A picture of our vibration and shock isolator WRI - A16. A heavy duty isolator and the wire is 16 mm in diameter.

Wire Rope Isolators – WRI-AXX

Wire rope isolators are typically used in aerospace, defense, industrial, and marine applications to reduce the transmission of vibration and noise, protect sensitive equipment from shock and impacts, and improve overall performance and longevity of machinery.

Variations

  • A picture of a wire rope isolator used for shock and vibration dampening

    WRI – A01

  • A picture of a wire rope isolator used for shock and vibration damping

    WRI – A02

  • A picture of a wire rope isolator used for shock and vibration damping

    WRI – A03

    Wire Rope Isolator A030127-038

  • A picture of a wire rope isolator used for shock and vibration damping

    WRI – A04

    WRI-A040112-045/8-IM-S

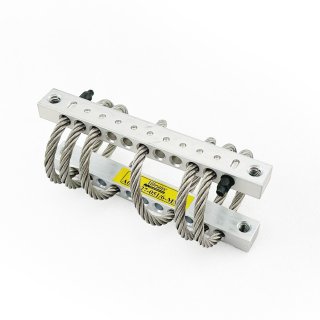

  • WRI – A05

  • WRI – A06

  • A picture of a wire rope isolator used for shock and vibration damping. This isolator WRI - A8 has a wire 8 mm in diameter.

    WRI – A07

  • A picture of our vibration and shock isolator WRI - A8. The wire is 8 mm in diameter.

    WRI – A08

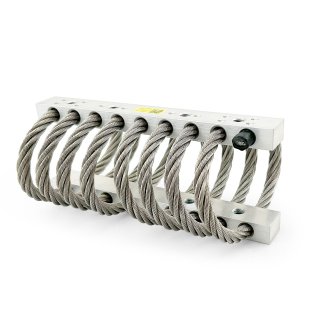

  • A picture of our vibration and shock isolator WRI - A10. The wire is 10 mm in diameter.

    WRI – A10

  • A picture of our vibration and shock isolator WRI - A13. The wire is 13 mm in diameter.

    WRI – A13

  • A picture of our vibration and shock isolator WRI - A16. A heavy duty isolator and the wire is 16 mm in diameter.

    WRI – A16

  • A picture of our vibration and shock isolator WRI - A22. A heavy duty isolator and the wire is 22 mm in diameter.

    WRI – A22

Product Characteristics

A wire rope isolator is a device used to provide shock and vibration isolation for equipment and machinery. It consists of multiple strands of wire rope aligned in a specific configuration and enclosed in a protective casing.

  • No aging
  • Corrosion resistant
  • High inherent damping
  • Very low amplification at resonance
  • Severe shock attenuation
  • Wide temperature range (-180°C to +300°C)
  • Maintenance free

Notes

Each cable mount has six alternative configurations with regard to fixture holes (see image ref. table). When ordering, make your choise and add the required hole configuration code to the type number. First letter is for upper bar and the second letter is for the bottom.

WRI-configurations we produce: II, IY, YY, IM, YM and MM.

Example: Wire Rope Isolator A030127-038-YM

Product Applications

  • Resilient Suspensions meeting Military Standards
  • Isolation of Sensitive Electronic Equipment
  • Isolation of Generators, Pumps and Compressors
  • Exhaust System Suspension
  • Isolation of Cabinets, Containers, etc.
  • Protection of Equipment during Transport
  • Extreme Temperature Applications
