Spring Isolators VT4412 and VT4422

This is a metal isolator made with a spring in high tensile steel, resilient cushion of 18/8 stainless steel wire mesh. Excellent for vibration isolation because of is very low natural frequency of 6 – 8 Hz. The VT4412 is a series of smaller springs from 1 to 6 and a load range spanning from 6 to 45 kg. The VT4422 is a series of seven larger springs with a load range spanning from 40 kg up to 725 kg. For specific load ranges per spring isolator; view their information from the technical specification sheet below.
Vibratec spring isolator VT4422 with low natural frequency between 6-8 Hz. Also has two steel cushion isolators inside the spring for greater damping.Vibratec spring isolator VT4422 with a mounting plate for easier installation.Vibratec spring isolator VT4422 with mounting plates and screws for installation.

Product Characteristics

Very soft spring isolators with low natural frequency designed for loading in compression only.

Scrolls: aluminium
Weights for VT4412 (depending on suffix): 0.13 – 0.21 kg
Weights for VT4422 (depending on suffix): 1.20 – 1.50 kg
Maximum excitation amplitude: ± 1 mm.
Mechanical strength: 2 g
Natural frequency: 6 – 8 Hz
Amplification factor: < 4
Temperature range: -90° to +300° C.

Product Applications

Vibration isolation of machines rotating at ≥ 800 rpm – fans, compressors, generating sets, engines etc. with or without seismic blocks. Protection of fragile equipment from vibrations.

Note

The mounts are delivered without mounting plate, which can be ordered separately. For greater static loads, multiple spring isolators are mounted together as a package. View our spring packages or consult us.

Technical Specifications

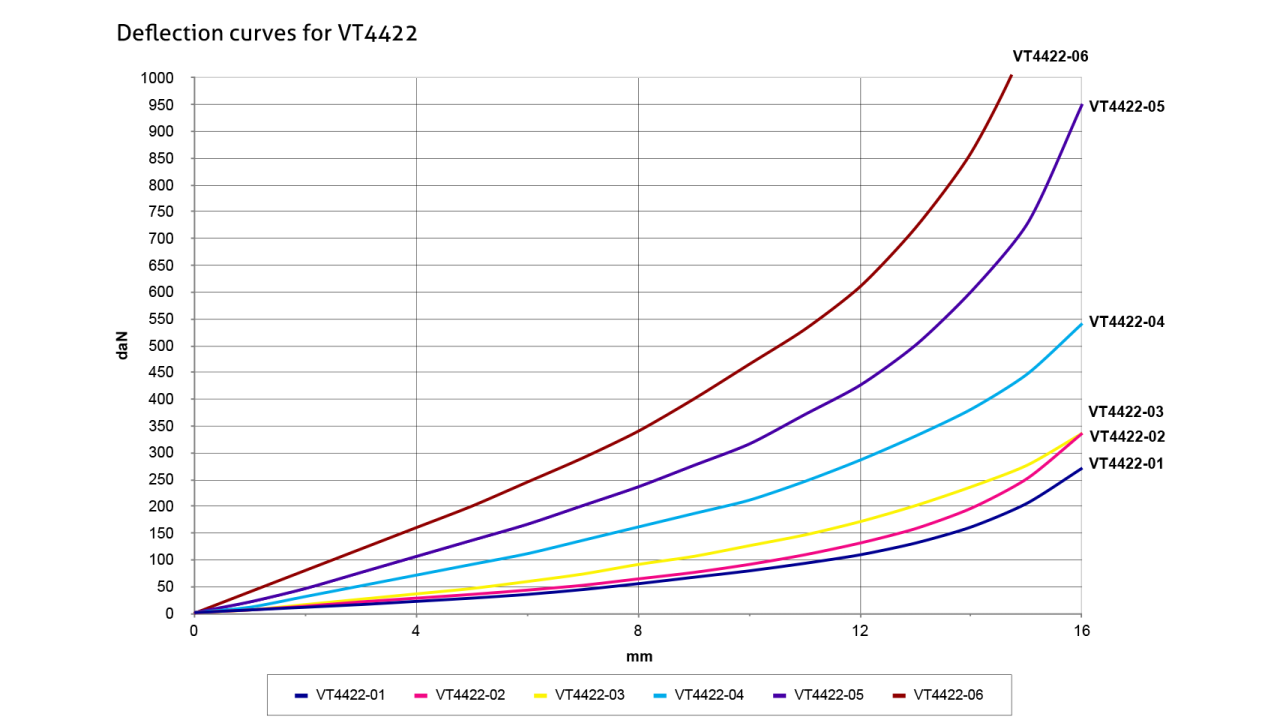

A technical drawing of the spring isolators VT4412 and VT4422A technical drawing of the spring isolators VT4412 and VT4422A graph of the spring isolator VT-4422 deflection curveA graph of the spring isolator VT-4422 deflection curve

Spring isolators VT4412 and VT4422 technical specificationsspring-isolator-vt4412-and-vt4422-technical-specifications.xlsx

Technical data

Suffix Load range in daN (≈kg)
VT4412 VT4422
-01 6 -10 40 - 85
-02 8 - 14 65 - 125
-03 12 - 20 110 - 190
-04 18 - 30 175 - 270
-05 24 - 46 250 - 400
-06 40 - 75 360 - 560
-07 - 450 - 725
Ref. D d H h
(mm) (mm) (mm) (mm)
VT4412 50 M10 60 50 ± 2
VT4422 80 M12 90 80 ± 2
Ref. L l J B C E Thickness
(mm) (mm) (mm) (mm) (mm) (mm) (mm)
Mounting plate for VT4412 90 69.6 10 60 7 11 4
Mounting plate for VT4422 140 110 15 100 11 13 4
