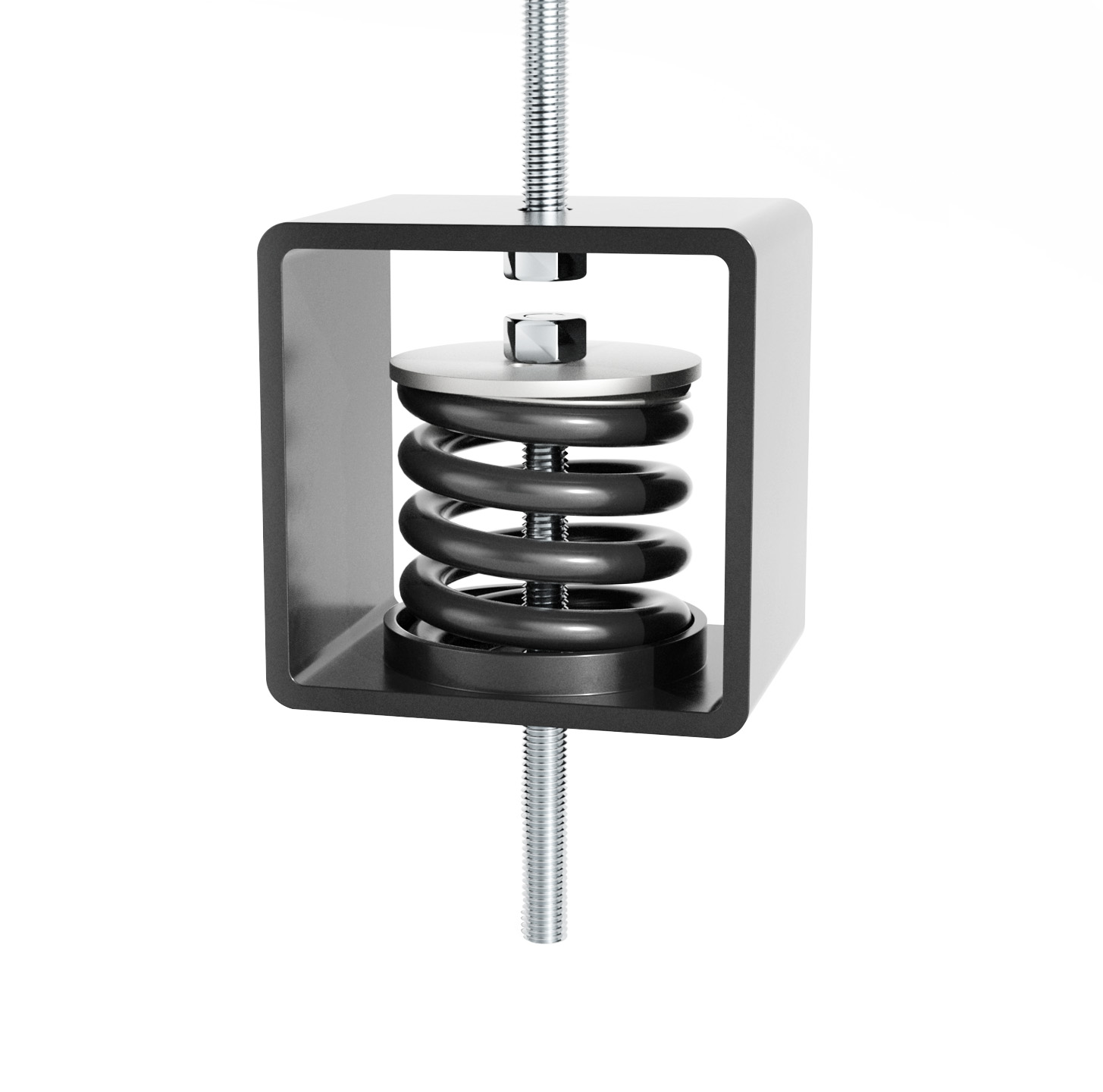

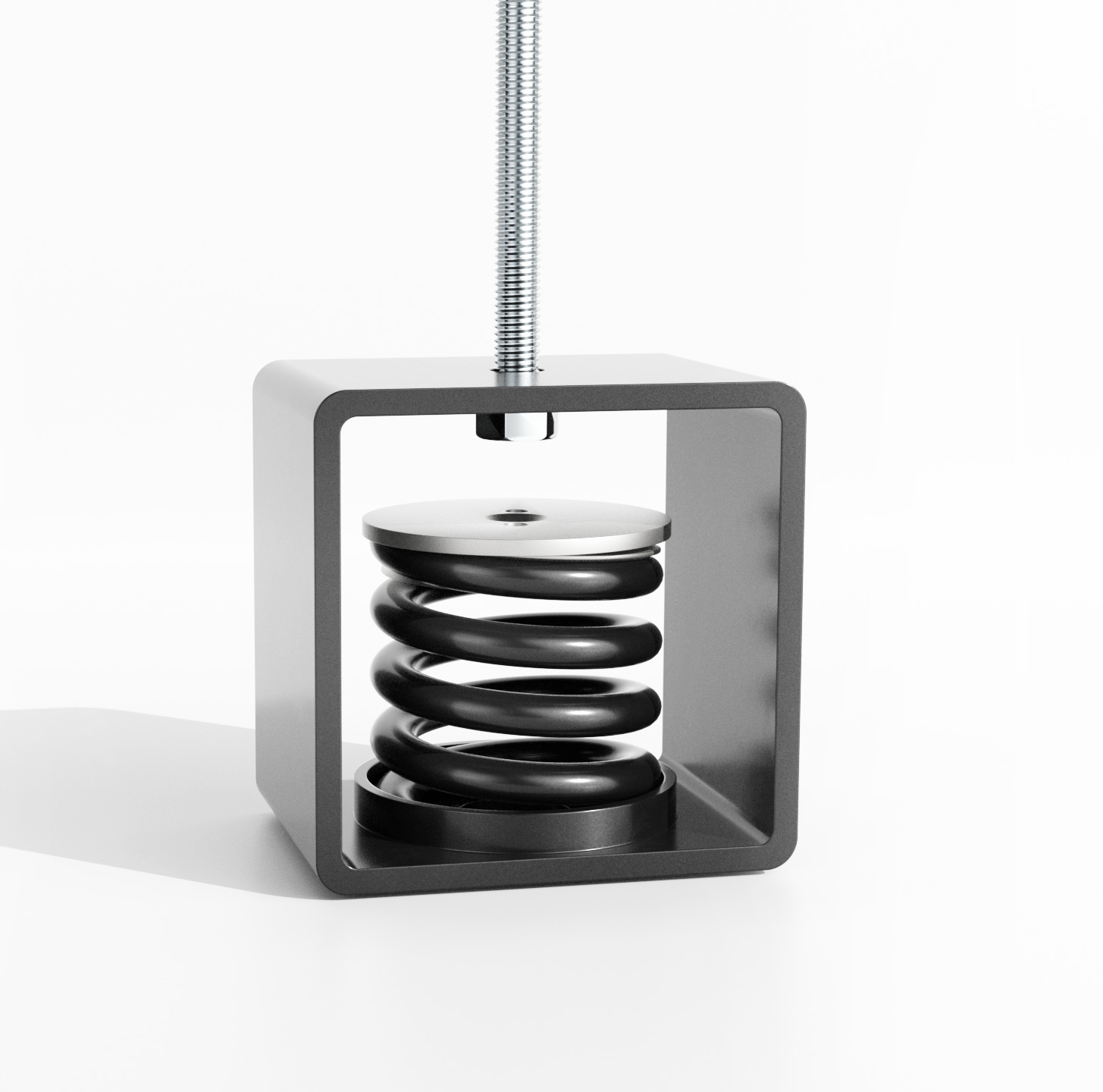

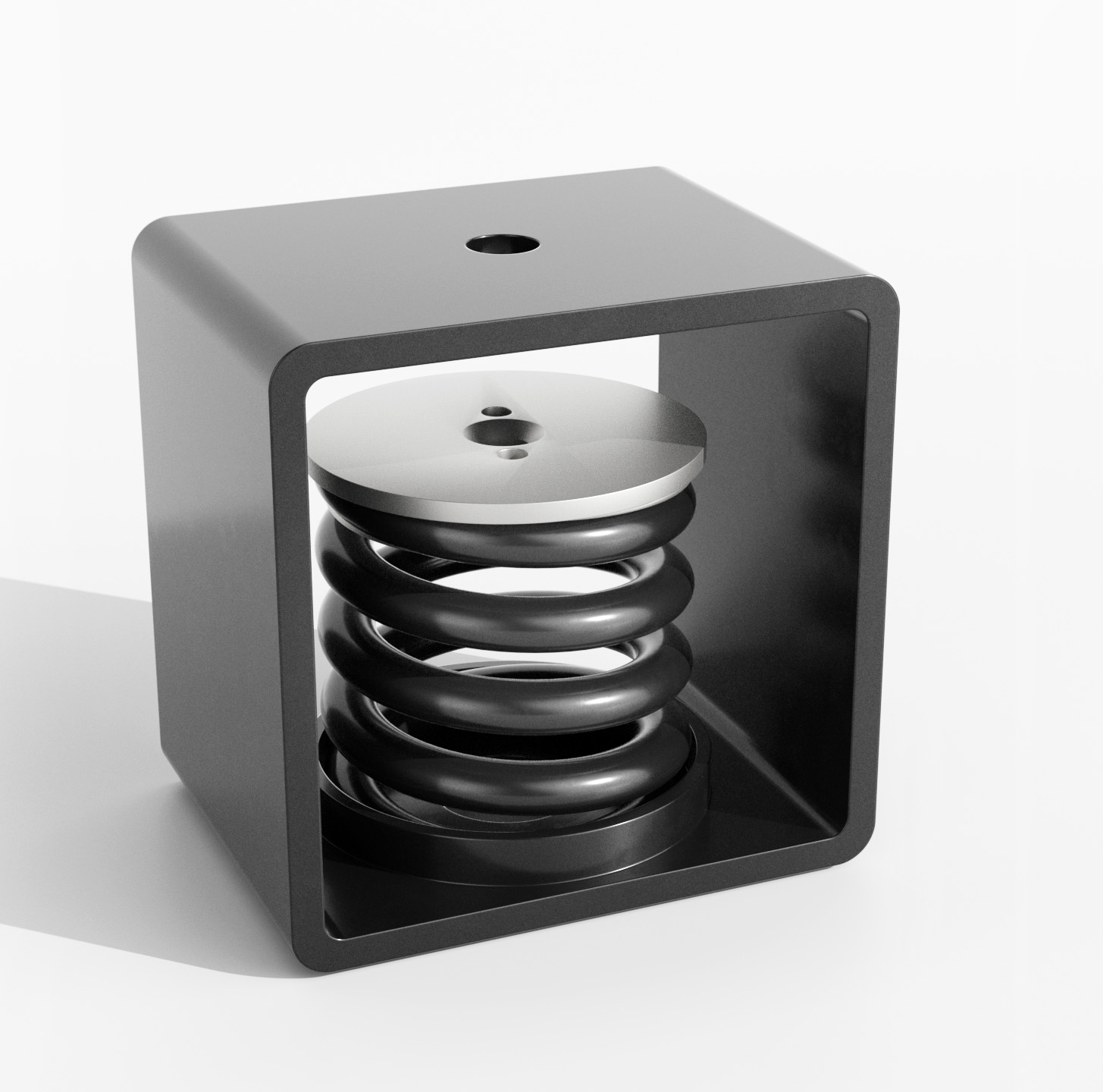

Spring Hanger VT-4523
Product Characteristics
Mounts with low natural frequency, 5-6 Hz, depending on preload.
- Accepts both static and dynamic tension forces.
- Maximum excitation: ± 1 mm.
- Mechanical strength: 2 g.
- Amplification factor: < 5.
- Temperature range: -90°C to +300°C
Product Applications
- Isolation of exhaust-, air- water- and steam-pipes.
- Isolation of fans, ventilation and cooling aggregates.
- Stabilization of frames and equipment on vessels, ships and vehicles.
Technical Specifications
