Regupol Sound & Drain 22
Product Characteristics
- Impact sound reduction ∆Lw ≥ 28 dB – ∆Lw ≥ 37 dB
- Maximum load 50 kN/m2
- Compressabililty ≤ 2 mm
- Polyurethane elastomer composite
- Dimpled profile on the underside
- Geotextile-laminated on top (160g, GRK 4)
- Compatible with commercially available bitumen and EPDM based membranes
- Compatible with PVC membrane, if approved by the membrane manufacturer
- If applicable, the thermal insulation should have a compressive strength of minimum 300 kPa.
Weight
- 81.0 kg/roll
- 6.5 kg/m2
Dimensions
- Length 10 000 mm
- Width 1 250 mm
- Thickness 15 mm
Product Applications
Terraces, Loggias, Balconies, Rooftops and Arcades.
Certification
European Technical Assessment ETA-18/0239
Cradle to Cradle Certified® is a registered trademark of the Cradle to Cradle Products Innovation Institute.
Interested in Regupol Sound & Drain 22?
Feel free to contact us for more information
Related products
Spring Package VT4625-B
Pre-Compressed Spring Boxes primarily used for vibration isolation of heavy machine foundations and buildings. The VT4625-serie is used where the…
Spring Package VT4660-B
Pre-Compressed Spring Boxes primarily used for vibration isolation of heavy machine foundation and buildings. The VT4660-serie is used where the…
Spring Hanger VE-101
Housing in zinc-plated steel, spring in high tensile stainless steel. Guiding bracket in neoprene. Zinc-plated fastening details.
Wall Mount VT-AWS-L
VT-AWS-L (Acoustic Wall Suspension) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.
Wall Mount VT-AWS
VT-AWS (Acoustic Wall Suspension) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.
Wall Mount VT-WH
Wall mount VT-WH (Wall Hanger) is used to de-couple inner walls to prevent transmission of vibrations and structure born sound.
Ceiling Hanger VT-MCH
The VT-MCH Multi Cushion Hanger is designed for both top or side mounting. It could be used together with Vibratec…
Ceiling Hanger VT-MSH
The VT-MSH Multi Spring Hanger for suspended ceilings, designed for both top or side mounting. It could be used together…
Ceiling Hanger VT-ACC
The Vibratec acoustic ceiling connector VT-ACC is designed for easy installation and good performance. The connector/hanger is made of galvanized…
Ceiling System VT-SFC
The VT-SFC Single Frame Ceiling System is designed to optimize the sound isolation of suspended ceilings. The system comprises of…
Ceiling System VT-CBC
The Vibratec VT-CBC Ceiling System is an acoustic ceiling designed and optimized for rehearsal rooms, music studios, theaters, cinemas, residential…
Ceiling System VT-MCH
The Ceiling System VT-MCH is designed for suspended ceilings to mitigate impact- and step- sounds. The hanger can be both…
Ceiling System VT-MSH
The Ceiling System VT-MSH is designed for suspended ceilings to mitigate impact- and step- sounds. The spring isolator delivers a…
Anti Vibration Pad – VT-AVP
Vibratecs Anti-Vibration Pad series is an elastomer isolator primarily used for vibration isolation of rotating machinery and other equipment. The…
Flexible Floor Bracket VT-FFB
Vibratec’s Flexible Floor Bracket is a quick and easy way to build an adjustable floating floor. The bracket fits on…
Floor System VT-BAT
Vibratec floor system VT-BAT is a quick and easy-to-install system with discrete isolators. The system comprises of 3 meter long…

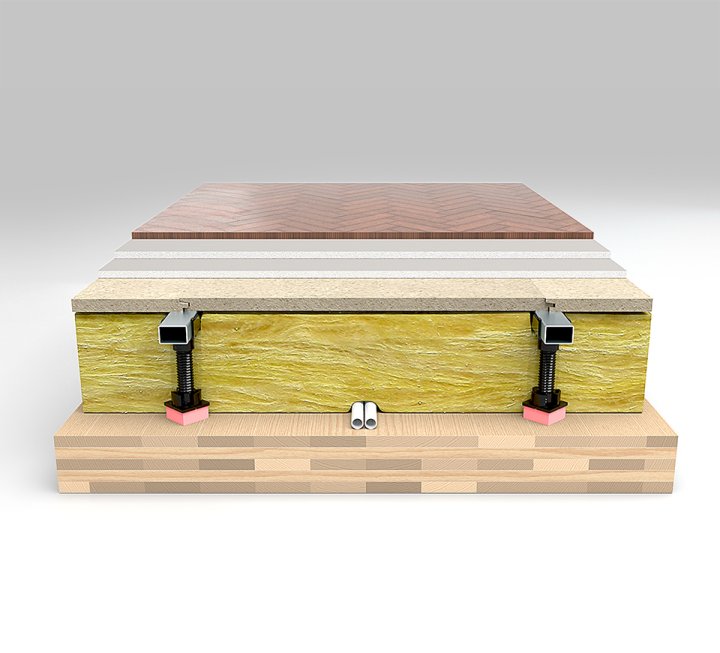

Floor System VT-dBlock
