Bulkhead Penetration VT-BHP

Vibratec provides a series of watertight bulkhead penetrations. They are delivered as complete sets, with no need for drilling or burning through plates. All you need to do is to burn a hole in the bulkhead, lead the pipes through and fix by welding. When leading exhaust pipes through bulkheads, direct Contact must be avoided, to prevent transfer of heat and vibrations (noise) to the construction. This can be safely done by applying bulkhead penetrations of type BHP. In somewhat adapted from these lead-troughs can be applied to stationary situations, like buildings, as well. Our deck and bulkhead penetrations permit free extension of pipes and limit noise transfer to minimum values. By applying lagging temperature transfer to the construction is minimized as well.

Product Characteristics

Installation

Mounting bulkhead penetrations is extremely simple, all you have to do is burn a hole in the bulkhead according to the sizes on the below chart.

Remove the gasket, insulation ring and rubber rings before welding!

Technical Specifications

bulkhead-penetration-vt-bhc-technical-specifications.xlsx

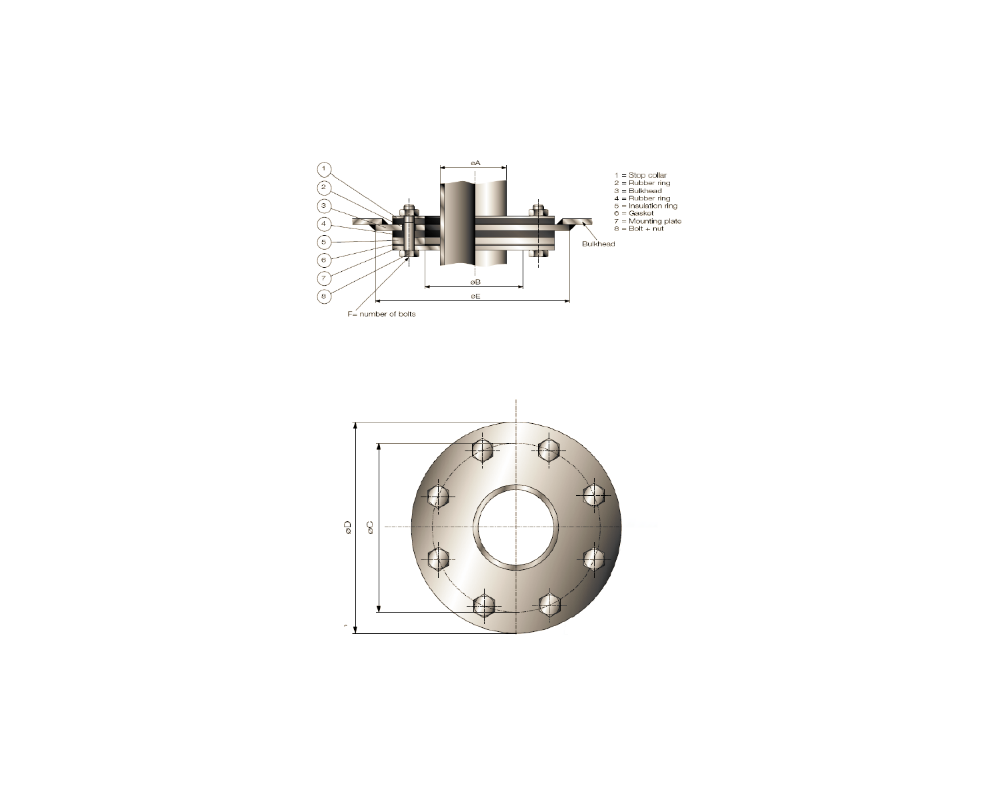

Dimensions

NB øA øB øC øD øE F ø Opening in bulkhead
(mm) (mm) (mm) (mm) (mm) (mm)
050 60.3 160 200 240 300 8 220
065 76.1 160 200 240 300 8 246
080 88.9 160 200 240 300 8 274
100 114.3 230 270 310 370 8 300
125 139.7 230 270 310 370 8 336
150 168.3 230 270 310 370 8 390
200 219.1 320 370 420 480 8 450
250 273.0 370 420 470 530 8 482
300 323.9 445 495 545 605 12 406
350 355.6 445 495 545 605 12 437
400 406.4 500 550 600 660 12 468
450 457.2 550 600 650 710 12 529
500 506.0 600 650 700 760 12 590
Other dimensions on request
